Gate X Position Check and Calibration Guide
Before starting the calibration process, it is necessary to check whether the Gate arm can remain on its own at a 45° angle.
A sketch of the pre-calibration positioning of the Gate arm at a 45° angle is available at the link below:
If the arm does not stay at 45°, the client should adjust it manually by following the instructions below:

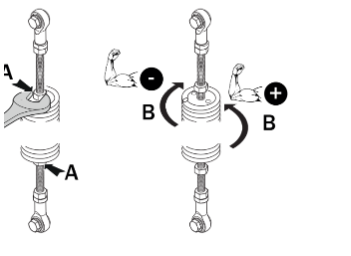

Unscrew the two screws as shown in the image.
Hold the spring by hand and rotate it in the + or - direction until the arm reaches the desired 45° position.
Tighten both screws again.
A sketch of the manual adjustment of the Gate arm at a 45° angle is available at the link below:
https://file.parklio.co/file/fyw2e9c30931056da4d79a7a1ab9265556666
Calibration process:
1. Make sure the arm is in the closed and locked position.
2. Press and hold the PROG button for a few seconds until APP appears on the display.
A sketch of the callibration phase APP is available at the link below:
https://file.parklio.co/file/fyw2ecc187b147d0340998b00aa152769718d
3. Unlock the arm while keeping it in the closed position.
A sketch of unlocking the Gate arm while keeping it in a closed position is available at the link below:
4. The message PHAS should appear on the display.
A sketch of the PHAS message is available at the link below:
5. Wait until PHAS starts flashing, then lock the arm in the down position.
A sketch of locking the arm in down position after PHAS message is available at the link below:
6. The message AUTO should appear on the display. The arm will then open slowly, pause briefly in the upper position, and then AUTO will start flashing while the arm closes.
The calibration process is now complete. The client should test the gate using the remote controls or the app.
It the following massages are shown on the display, repeat the process or check Gate settings:
noPH: calibration procedure failed
APP.E: calibration error (in this case there is probably something wrong with default settings)
A sketch of movements after the AUTO message at the end of calibration process is available at the link below:
