Parklio Flashing Light to Gate X Connection
This article provides wiring diagrams for connecting a Parklio flashing light, or a flashing light from another manufacturer, to Gate X.
Important: These wiring diagrams apply only if Gate X does not have an LED stripe connected.

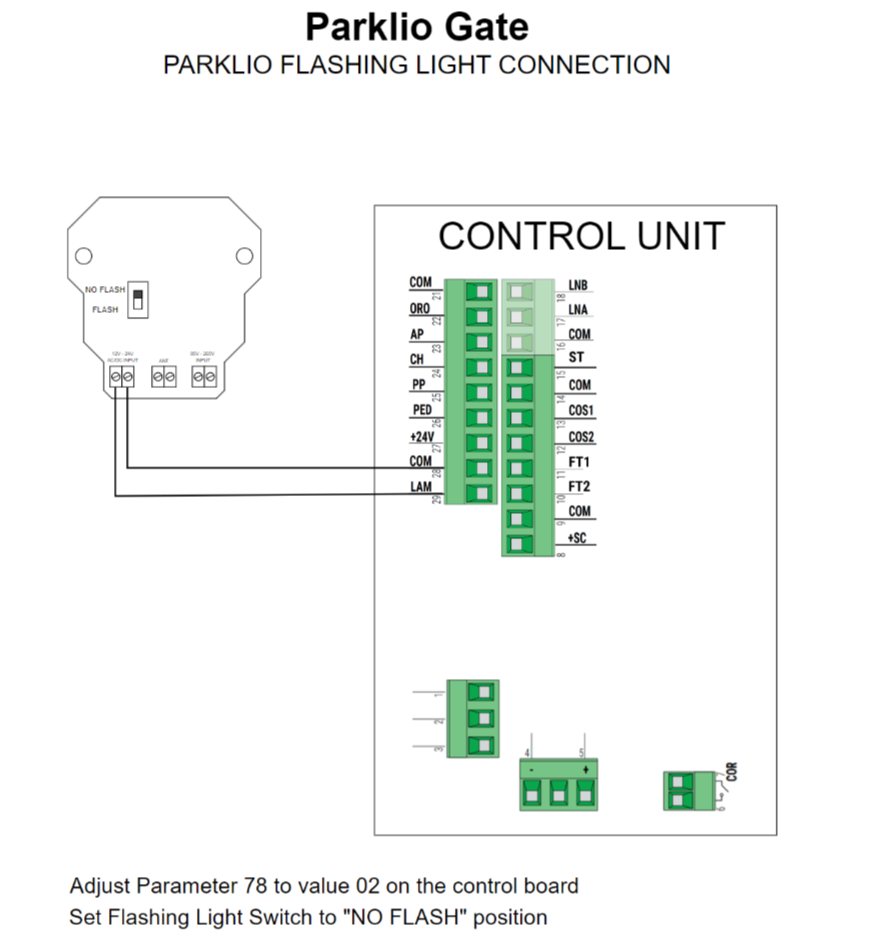

Photo of a wiring diagram between Parklio Gate's control board and flashing light is available on the link below:

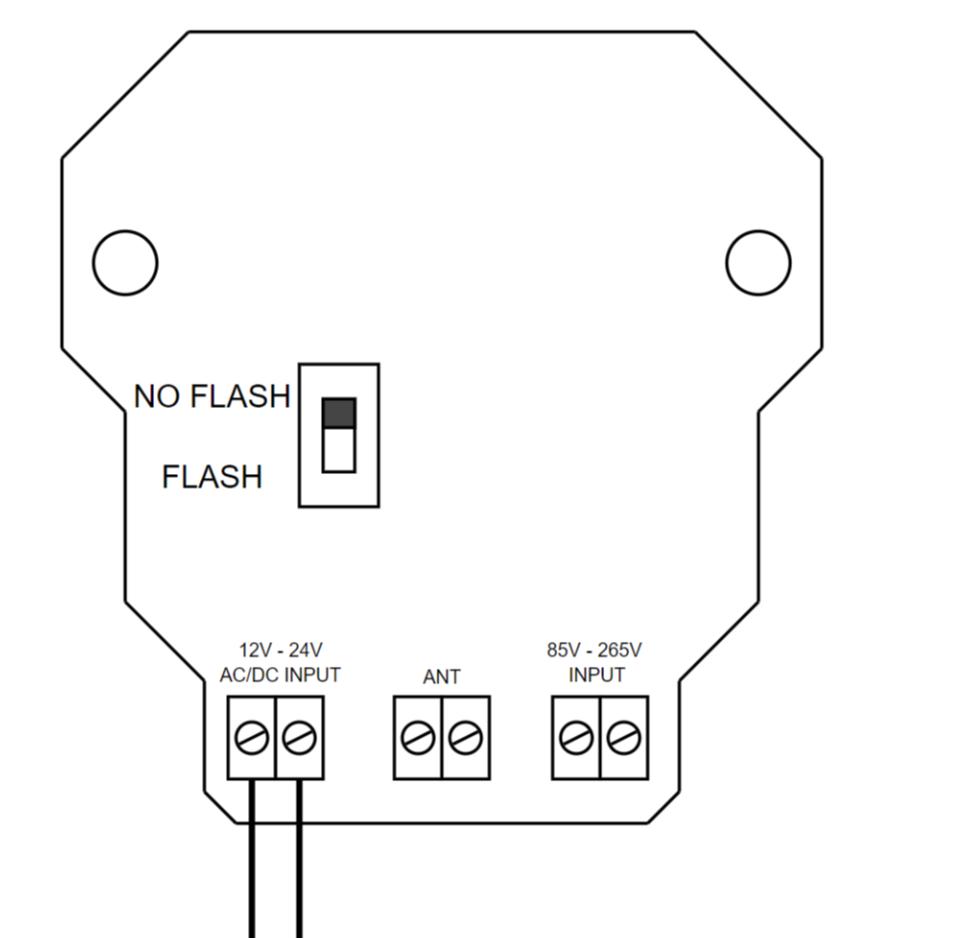

Photo of a wiring diagram between Parklio Gate's control board and flashing light on the flashing light is available on the link below:

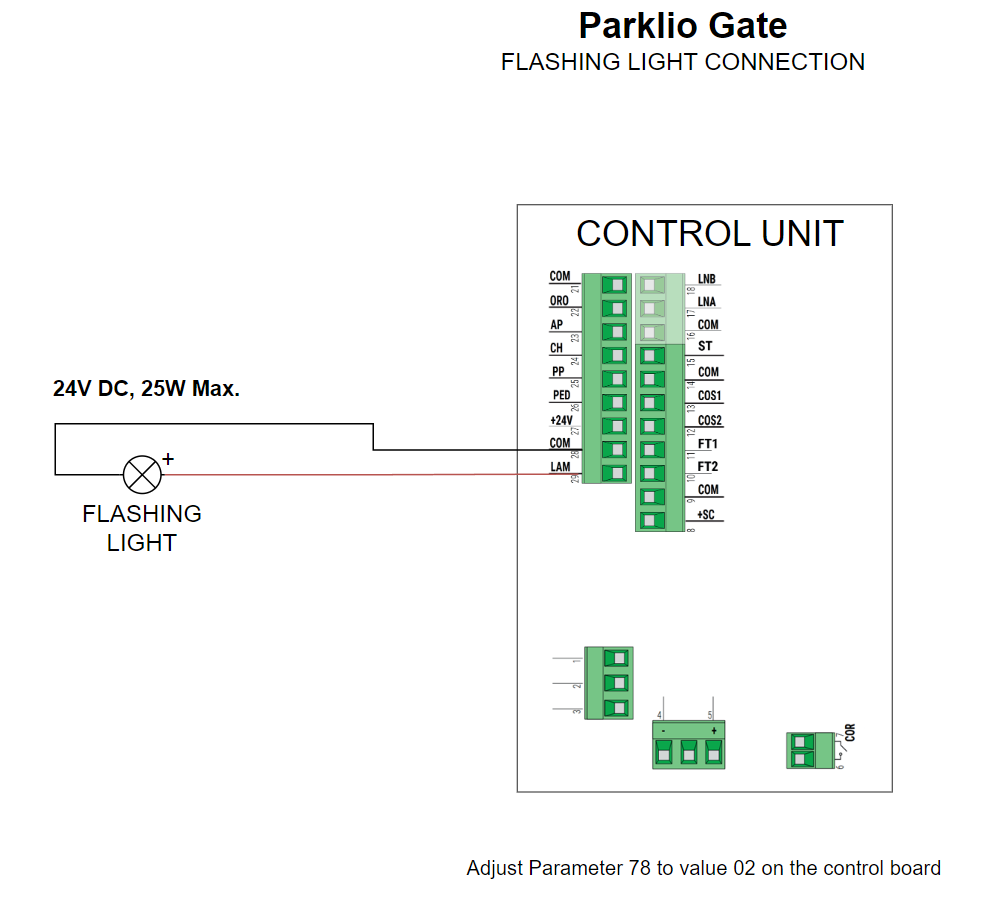

If the user is using a flashing light from another manufacturer instead of a Parklio one, valid wiring is below:
Photo of a wiring diagram between Parklio Gate's control board and flashing light on the Parklio Gate's control board is available on the link below:
