Connecting an LED Strip to Gate X

To connect an LED strip to Gate X, an additional relay must be installed if the client requires advanced LED strip functionality. This allows the LED strip to operate based on specific barrier states or logic.

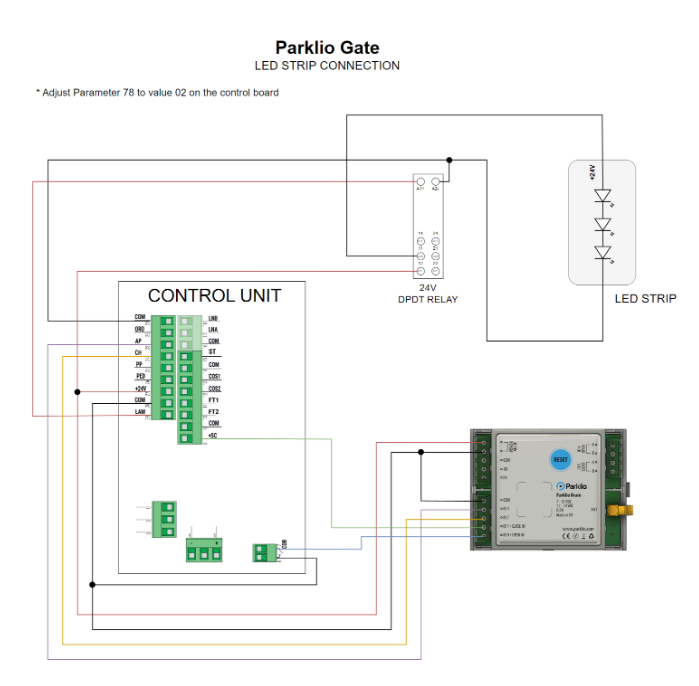

Below is the wiring diagram for connecting the LED strip using an additional relay. After completing the wiring, parameter 78 must be set to 02.


Basic LED Strip Connection (Continuous Lighting)

If the client only wants to connect an LED strip for improved visibility and requires it to remain continuously illuminated, no additional relay is needed.

In this case, simply:

  • Connect the positive (+) wire of the LED strip to the +24V terminal on the barrier control board.

  • Connect the negative (–) wire of the LED strip to the COM terminal on the barrier control board.

This setup ensures constant illumination of the LED strip without any functional control logic.
