How to Connect Push Button for Bollards

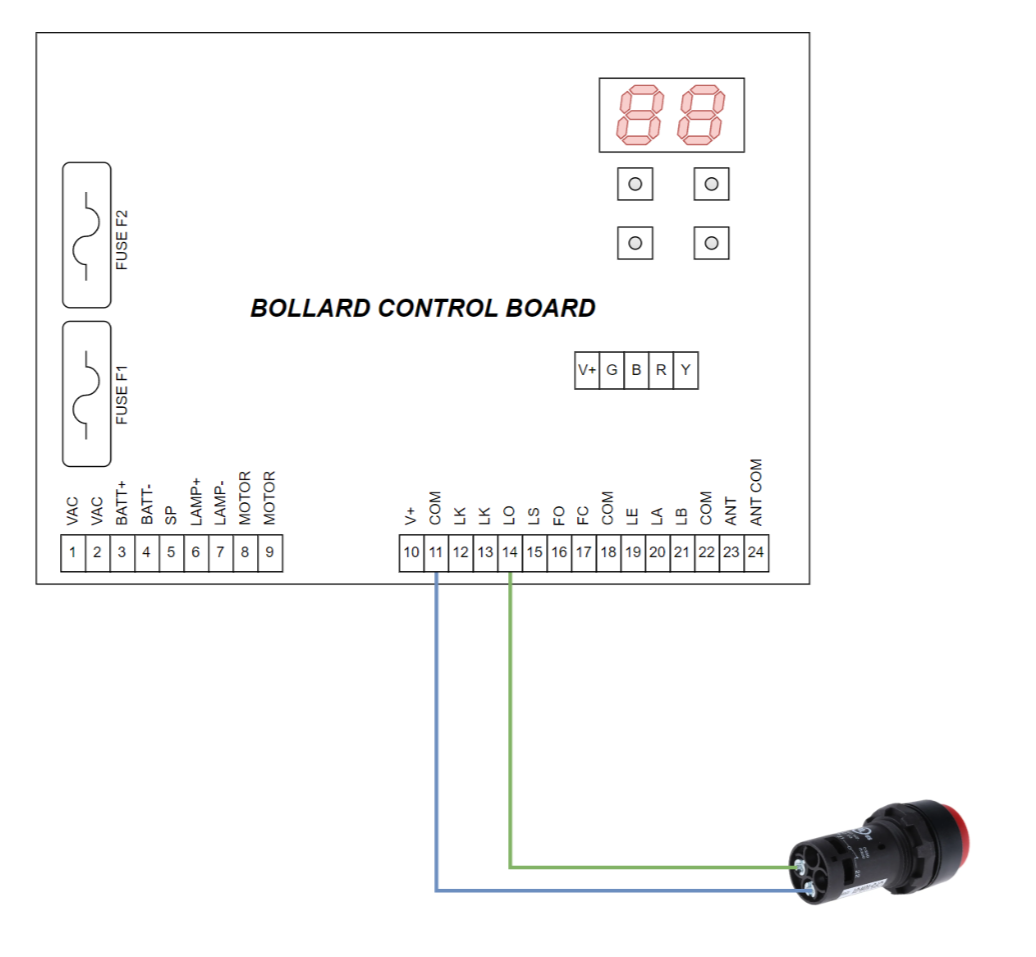

To connect a Parklio™ push button to the Bollard, run two wires from the push button contacts to the LO and COM terminals on the Parklio™ Bollard control board.

​

​

Refer to the images below for a clear illustration of the connection.You can find the Parklio Bollard to a push button wiring diagram at the following link: https://file.parklio.co/file/ak1i3aa5f2ea7464f499e84aea65972afdcf6
