Bollard Control Box Overview
Each bollard is delivered with a control box responsible for powering and controlling the device.
The control box manages the electrical supply and communication required for the bollard to operate properly.
Control Box Dimensions
The dimensions of the control box are:
-
Height: 250 mm
-
Width: 200 mm
Purpose of the Control Box
The control box serves two main functions:
-
Power supply for the bollard mechanism
-
Control unit that manages the bollard’s operation and system communication

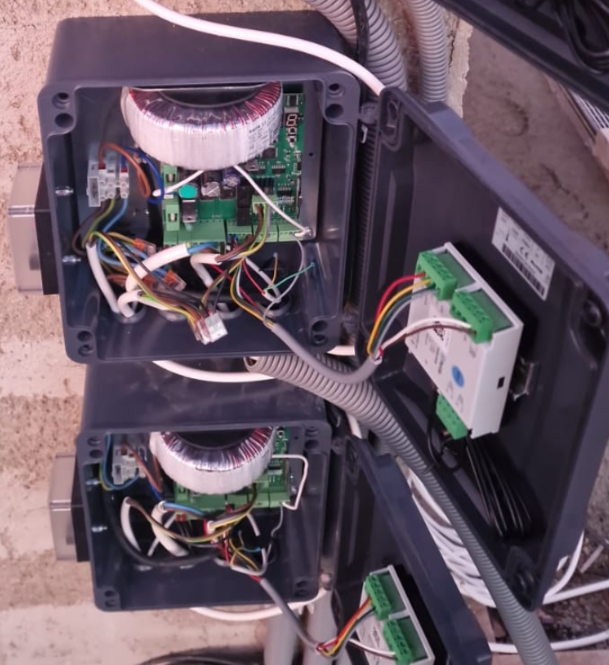

The image of the inside of the Parklio Bollard's control box:
You can find the image of the inside of the Parklio Bollard's control box at the following link: https://file.parklio.co/file/ak1i3ec1270b8269840d1880d0fd242d4cbe8
