Solar Bollard Junction Box

Solar Bollard Junction Box

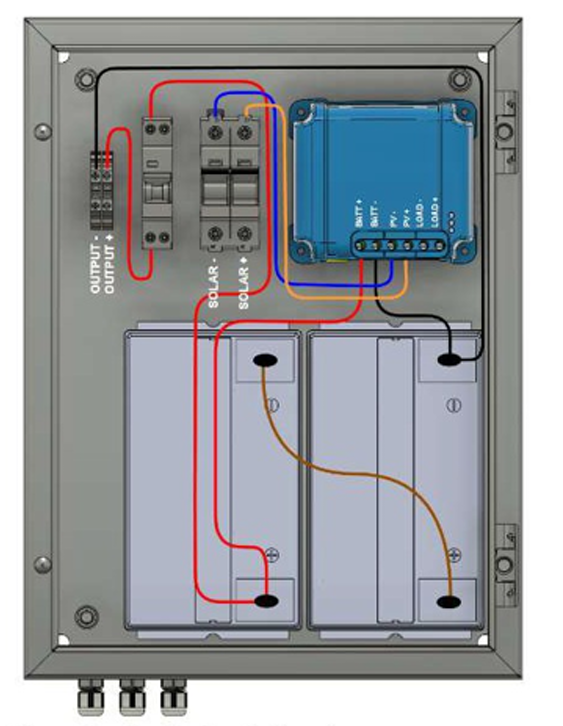

The Solar Bollard Junction Box is an enclosure that contains the batteries and inverter used for powering the bollard through a solar energy system.

This box manages the storage and conversion of solar energy required for the bollard’s operation.

Technical Details

Detailed technical information and installation instructions can be found in the User Manual.

Junction Box Dimensions

The dimensions of the junction box are:

  • Width: 300 mm

  • Height: 400 mm

The junction box should be installed in a suitable and accessible location to allow proper maintenance and system operation.
