There is no internet connection to ANPR

If your ANPR works in HIK interface but can not connect to Parklio PMS system it is probably because your internet connection has firewall.

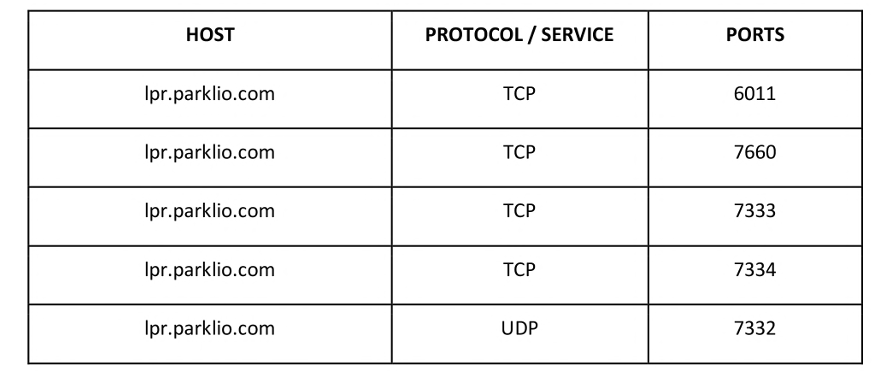

If the network has a firewall enabled you may need to enable the camera to access the remote hosts. The list  of services is provided below:

Please keep in mind that the hosts can resolve to multiple IP addresses, which can change at any time.
