Parklio Gate technical Characteristics

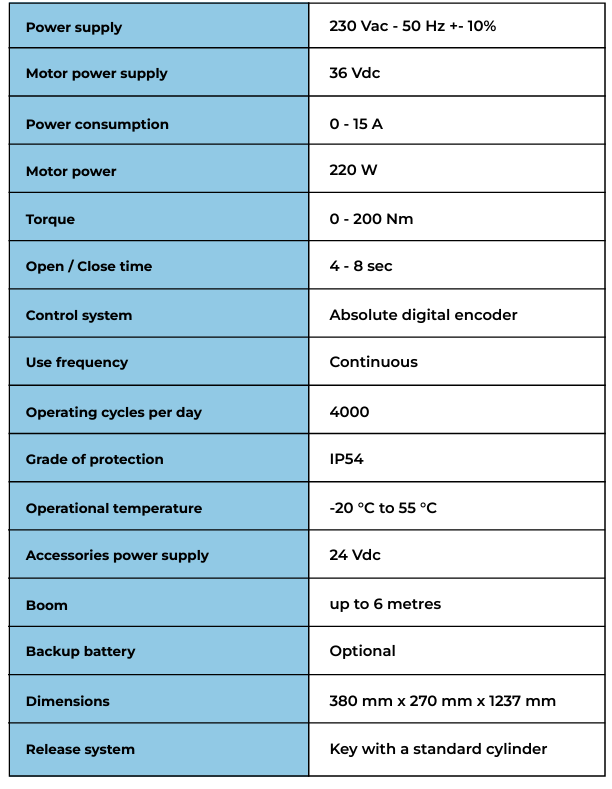

Technical characteristic for Parklio Gate 4

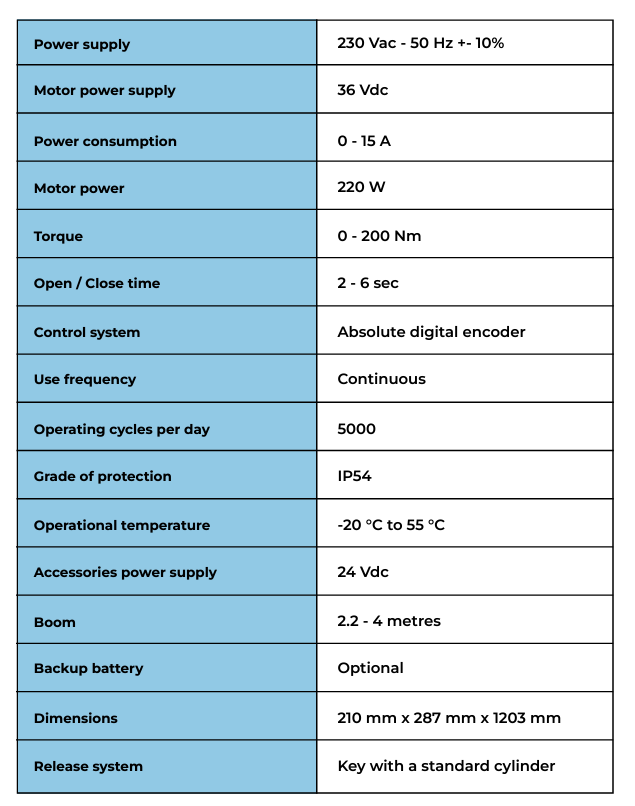

Technical characteristic for Parklio Gate 6
