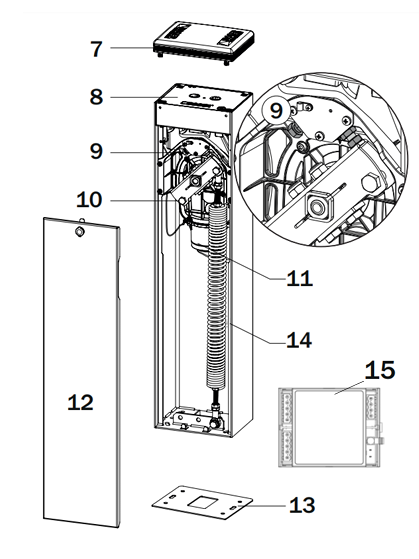

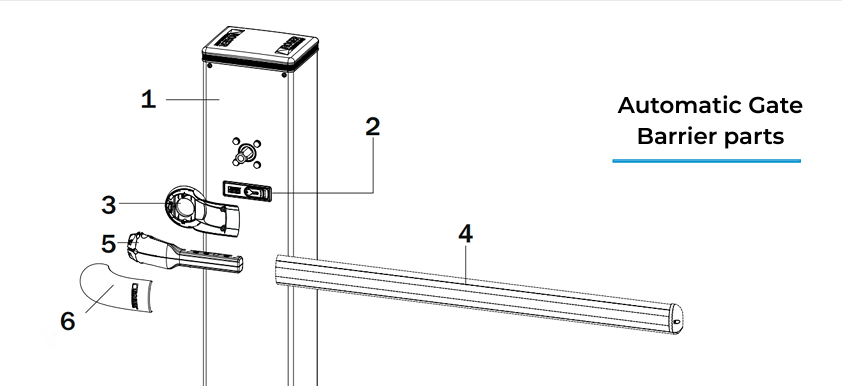

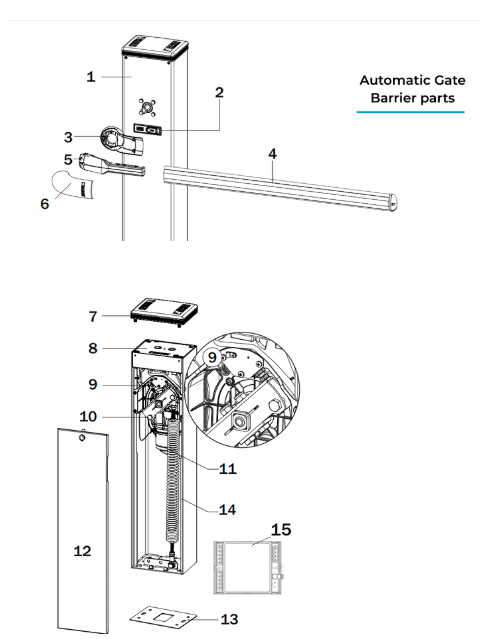

Components of the Parklio Gate
You can also find a photo showing the components of the Parklio Gate at the following link: https://file.parklio.co/file/nu6bj95e499a9654a49068862736760c2ee40
- Barrier unit cabinet, in carbon steel with anti-corrosion treatment and painted
- Key release with standard lock
- Boom support arm rear cover
- Elliptical boom up to 3 m, in white painted aluminum with slot cover profiles and shock-resistant rubber or Elliptical boom up to 4 m, in white painted aluminum with slot cover profiles and shock-resistant rubber
- Boom support arm in die-cast aluminum
- Boom support arm front cover
- Head in die-cast aluminum with anti-corrosion treatment and painted, complete with diffuser in transparent polycarbonate and BI/BLED led lights
- Controller unit
- Gate open/close mechanical stop
- Steel spring fastening linkage lever
- Gear motor complete with brushless motor and absolute encoder
- Corrosion-proof, painted steel inspection hatch
- Galvanized base plate for barrier fastening
- Spring
- Brain for app control
Contact the Parklio support team if any of the parts are incorrect, missing, or damaged. Keep the carton and all original packing materials in case the product needs to be send for repair.
