Mounting Ethernet Connector for Gateway

Mounting Ethernet Connector for Gateway

For optimal performance, it is recommended to use an Ethernet cable with a minimum Cat5e rating. If your Parklio Gateway is equipped with a SIM card, the Ethernet connection is optional. Parklio can embed a SIM card into the Gateway, enabling a connection to the Parklio server via 4G/3G/2G mobile networks.

IMPORTANT NOTICE
Connecting the Ethernet cable directly to the Gateway without using the provided connector will result in a loose contact, leading to an unstable Ethernet connection. This will prevent the Gateway from functioning properly.

STEP 1. Strip the outer shield of the Ethernet cable

You can find the image of striping the outer shield of the Ethernet cable at the following link: https://file.parklio.co/file/pgidpbedf67c1dac9472a88b84195b03fa332

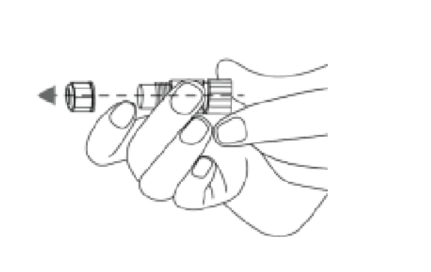

STEP 2. Unscrew the provided Ethernet connector

You can find the image of unscrewing the provided Ethernet connector at the following link: https://file.parklio.co/file/pgidpedd1149b32c24fc3971fccdd8d8ec446

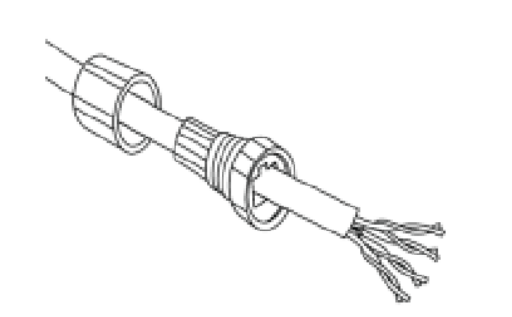

STEP 3. Pull the previously stripped Ethernet cable through the Ethernet connector

You can find the image of pulling the previously stripped ethernet cable through the Ethernet Connector: https://file.parklio.co/file/pgidp0fc729d5b5c048dd9e8da39a26180618

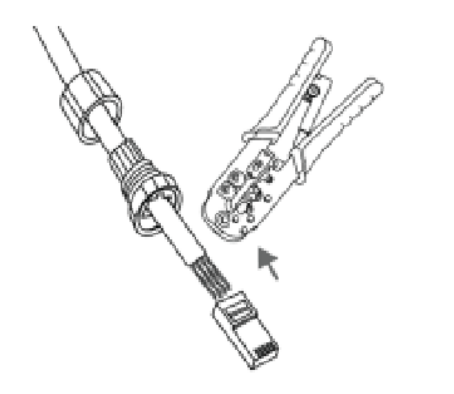

STEP 4. Strip the colored wires and organize them in the proper way. Use a crimping tool to crimp the RH45 connector:
You can find the image of stripping the wires and crimping the RH45 connector: https://file.parklio.co/file/pgidp8feee1d4d9e443e1b6899caf7c5ee574

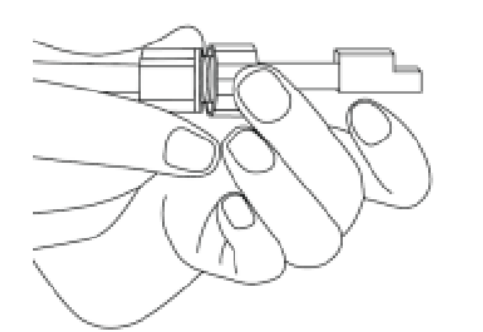

STEP 5. Tighten the Ethernet connector parts through which the Ethernet cable is routed.








You can find the image of tightening the Ethernet connector parts through which the Ethernet cable is routed: https://file.parklio.co/file/pgidp4ba0bbe2bfda46b28c0d76f293f62c28
