Parklio Chain - Optimum Height of Chain Depending on Chain Lenght

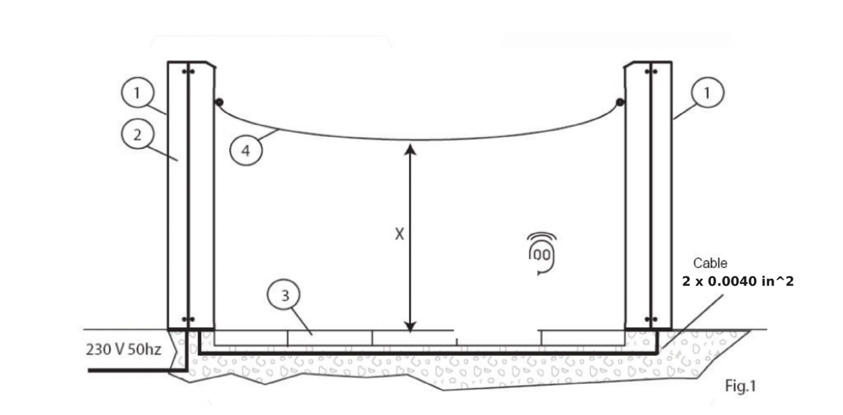

The Parklio Chain consists of the following main components:
- Parking post
- Control unit
- Profile for the chain
- Chain
You can also find the image of components of Parklio Chain at the following link: https://file.parklio.co/file/pawna4d6784370a224b359546c712cfab26f3

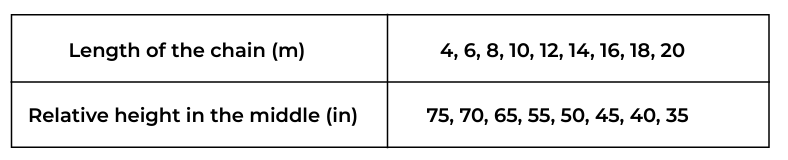

In the following table, you can see the recommended relative height in the middle of the chain, depending on the chain length:
You can also find the image of the recommended relative height in the middle of the chain, depending on the chain length at the following link: https://file.parklio.co/file/pawna4ab73a8a1e9f47d5ac8adeeade6a6f17
Important! The value in the table has been determinated using a chain of 400 grams/meter!
