How to Connect Push Button to Gate X
To connect a Parklio™ push button to the Gate X, run two wires from the push button contacts to the AP and COM terminals on the Parklio™ Gate X control board.

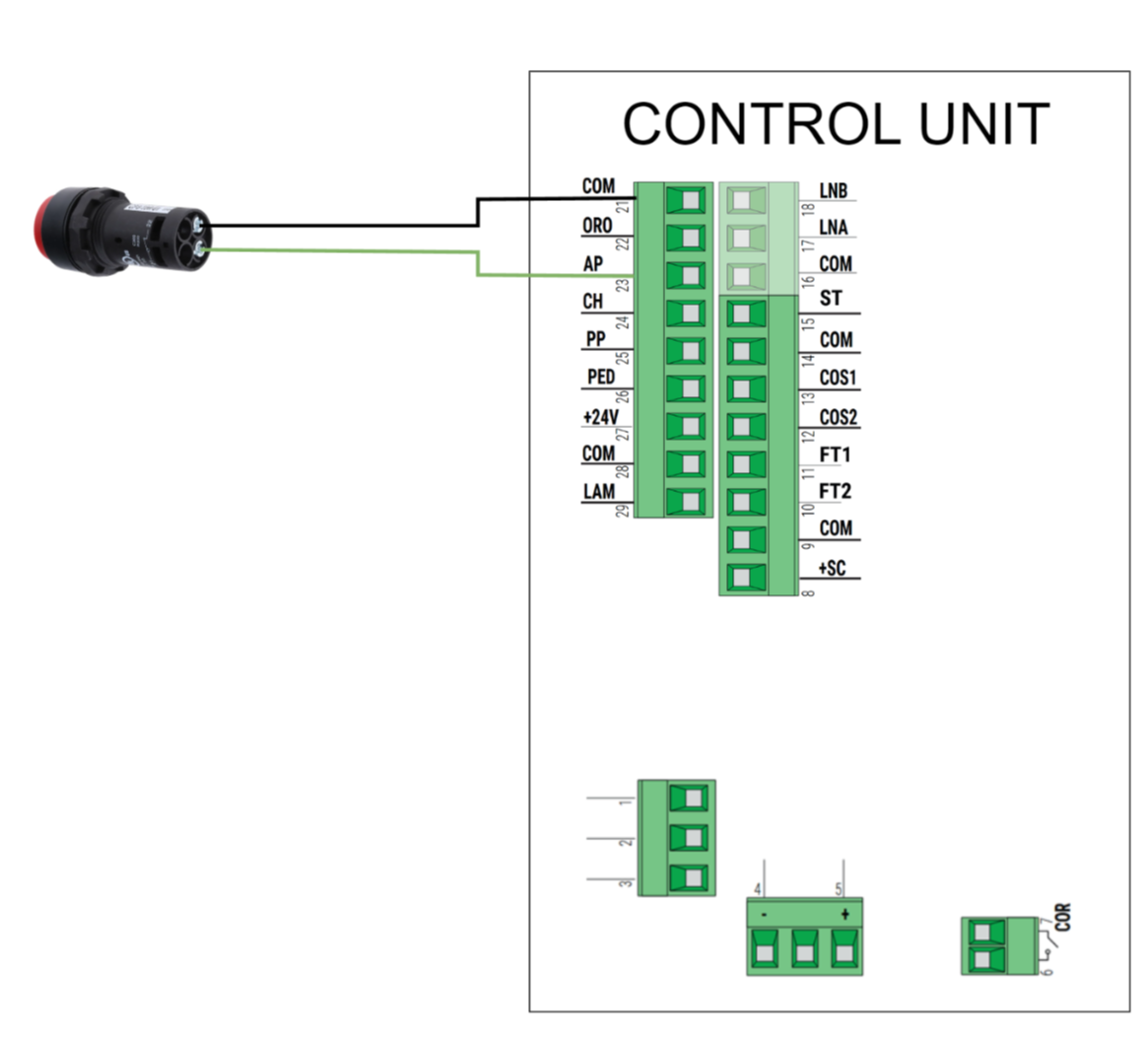

Refer to the images below for a clear illustration of the connection.
A photo of the wiring diagram for connecting the control unit and push button is available at the link below:
