How to connect Push button to Gate

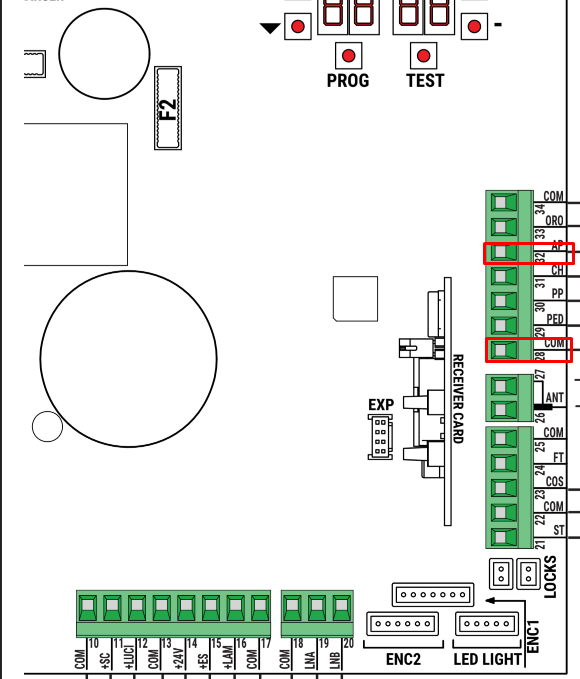

To connect a Parklio™ push button to the Gate, run two wires from the push button contacts to the AP and COM terminals on the Parklio™ Gate control board.

This wiring setup applies only when the push button is intended for opening the Gate.

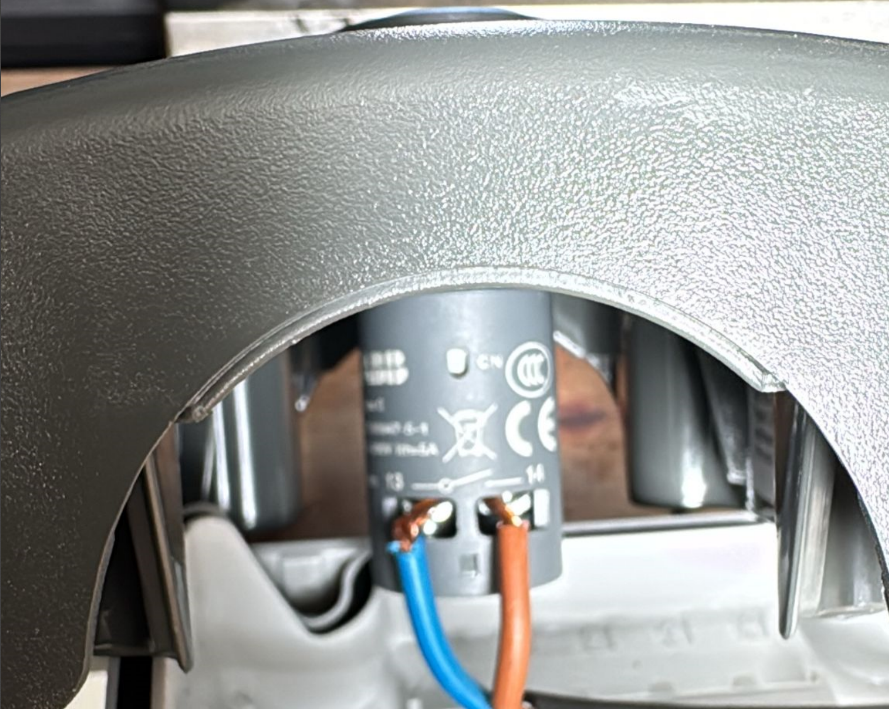

Refer to the images below for a clear illustration of the connection.
