Gate Default Settings (Control Board)
These are the default settings for the Parklio Gate and should not be changed without consulting Parklio Support. You should only check these settings if the Gate is not functioning properly. Any necessary adjustments will be made at our production facility upon the client’s request.
A0 - 00
A1 - 02 - BI006 (4,5m-6m)
A1 - 03 - BI004 (up to 3m)
A1 - 04 - BI004 (3m-4m)
A2 - 99 - Auto close attempts
A5 - 01 - Pre-maneuver flashing warning
A8 - 01 - Barrier open/photocell test function
10 - 01 - Enable external device - Brain
21 - 10 - Setting automatic closing time
49 - 03 - Number of automatic closure attempts
76 - 02 - Remote control channel
Optional settings:
A0 - 11 - Master
A0 - 10 - Slave
These settings are required when you have synchronized Gates and want one Gate to control the other.
71 - 00 or 01 - 00 - set to 00 for a gate arm on the right side, or 01 for a gate arm on the left side.
If client wants to change arm's side on Gate this setting must be changed.
79-02 - Enables LED stripe on arm.
This setting must be activated when client subsequently installs the led strip.
Solar Gate:
A8 - 03

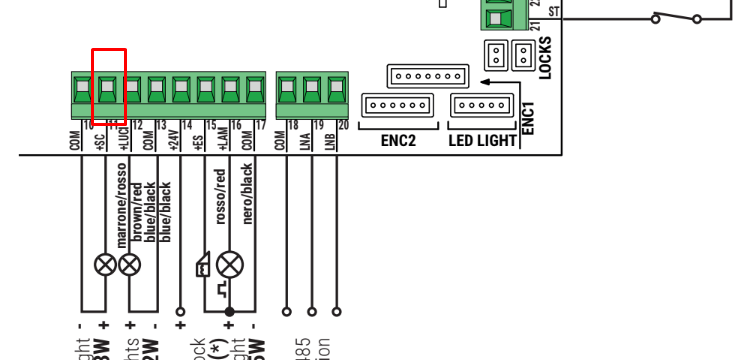

+ of the photocell must connected on SC+ of Control Board.
You can also find the photo of connection of the photocells to the control board on solar panel powered Gate at following link:
