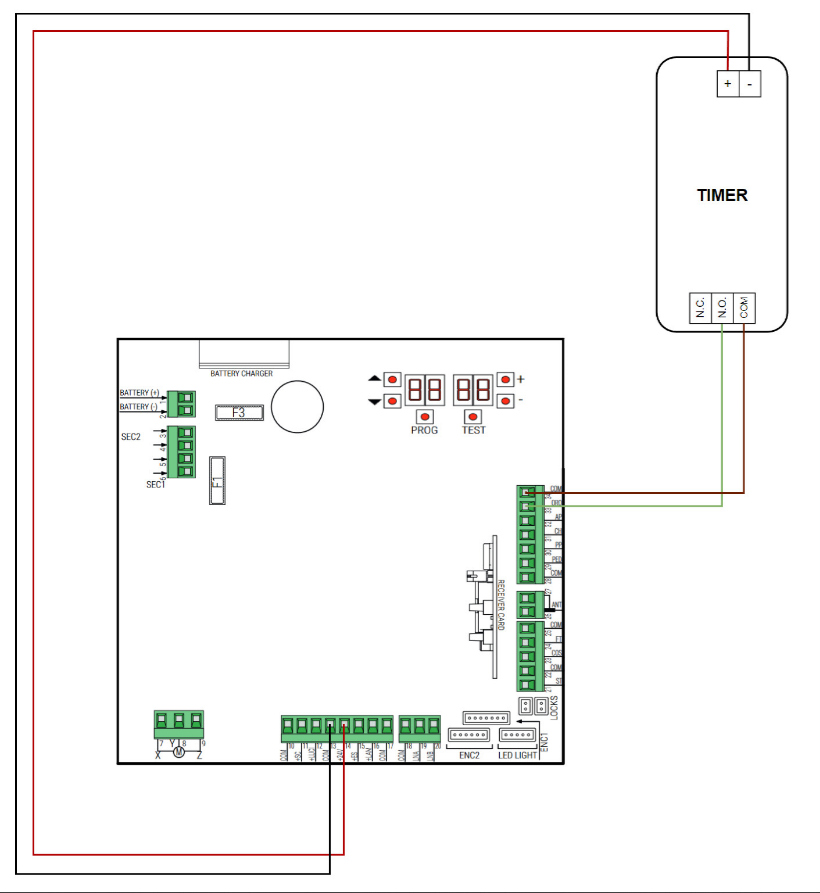

Connecting Timer to the Gate - Wiring Diagram
If you purchase the Timer after you have already received the Gate, you will need to connect it properly. Please find all the details below:
Connect :
TIMER Power + / 24 V+ -> GATE +24V (13)
TIMER Power - / 24 V- -> GATE COM (12)
TIMER COM -> GATE COM (34)
TIMER N.O. -> GATE ORO (33)
You can also find a photo showing the wiring of the timer on the Gate at the following link: https://file.parklio.co/file/nu6bj67414243e31741dfa3ab488c198d47b1
