Changing Arm Side (DATA Error)

Changing Arm Side (DATA Error)

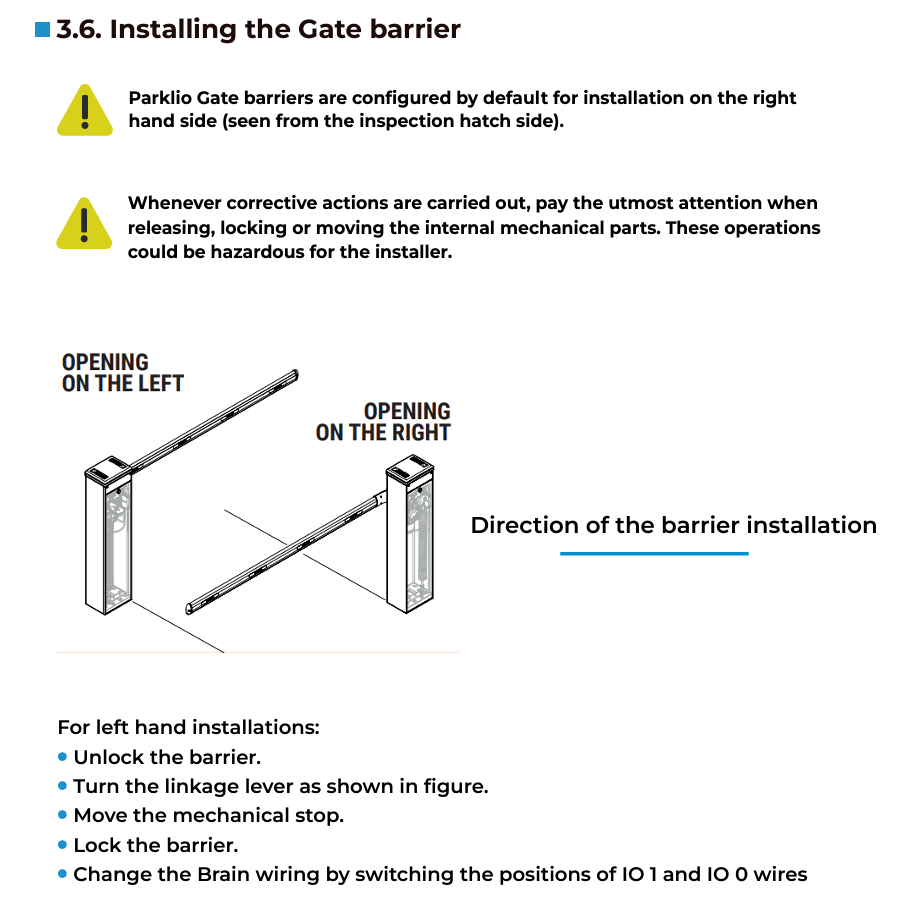

If user wants to change side of arm on their own they should read instructions in User Manual, chapter 3.6.:

When changing side of arm it is possible that you will get DATA error on control board display and Gate will not work properly. DATA error means spring is not balanced properly after changing side.
You should do next steps to remove error:
  1. Unlock arm with key

You can also find the photo of how to unlock arm with the key at the following link: https://file.parklio.co/file/8zevx6dc46a457f04415d9ceca04fde74f3bd

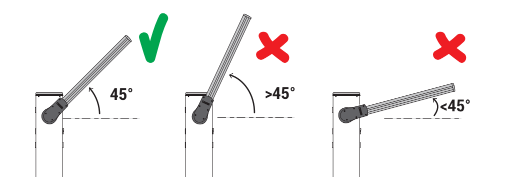

      2. Check balance of spring, it should stand alone when put manually on 45°

You can also find the photo of how to manually adjust the arm on 45° at the following link: https://file.parklio.co/file/8zevx5aa95a9515254cbcb2ac9f9d4b8a3c21

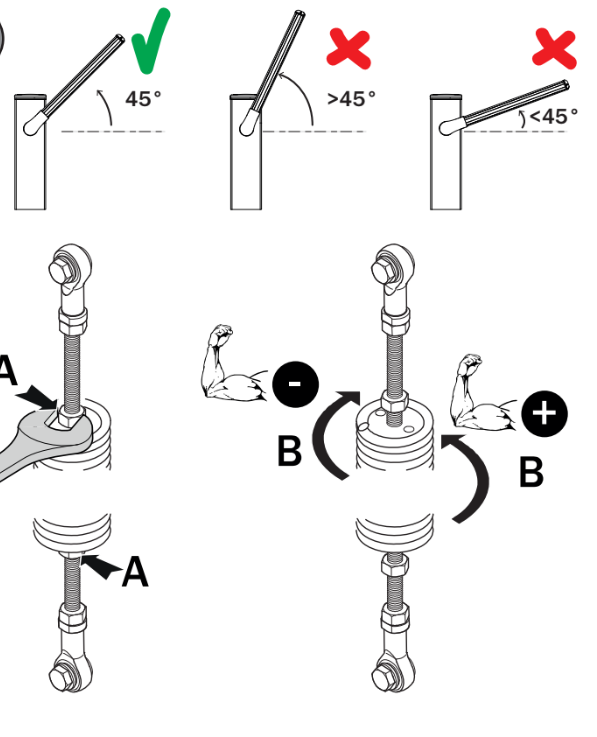

      3. If spring is not standing on 45° screw or unscrew spring manually until you get desired position

















You can also find the photo of how to manually adjust the arm on 45° at the following link: https://file.parklio.co/file/8zevx530b68ebc9d440d3926554a3010086d6

      4. After adjusting spring lock arm (opposite of first step) and try to manipulate Gate with your App
      5. If it is still not possible please check out article: Standard acquisition procedure (https://parklio.zohodesk.eu/portal/en/kb/articles/standard-stand-alone-acquisition-procedure) - It would be the best to do this process after adjusting spring.
