How to Enable Auto-Close on Parklio Chain

How to Enable Auto-Close on Parklio Chain

The Auto-Close feature is available for Parklio Chain, but it must be enabled manually via the control board, as it is not configurable through the app.

How to Enable Auto-Close

Follow these steps to set up Auto-Close on your Parklio Chain:

  1. Remove the back cover of the master unit.

  2. Ensure the chain is in the up position before proceeding.

  3. Locate the large white box with four screws, unscrew them, and remove the top cap of the box.

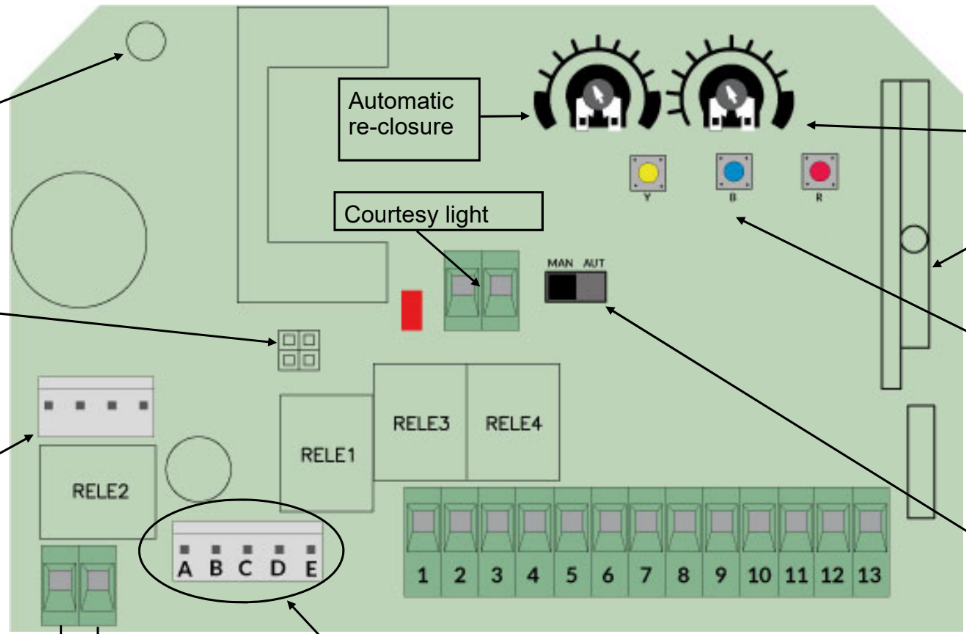

  4. Inside, you will find the control board, which looks like this:

  5. Identify the left wheel on top of the board, labeled as Automatic Re-Closure (as shown in the image above).

  6. Refer to the next image to correctly set up Auto-Close.

Adjusting the Auto-Close Time

The re-closure wheel has time marks, allowing for precise setup of the closure time. Adjust the wheel accordingly to set your preferred auto-close delay.

Once configured, the Parklio Chain will automatically close after the set delay time.
