ANPR mounting options and connections

ANPR mounting options and connections

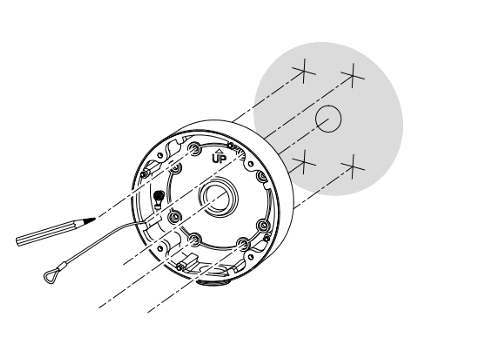

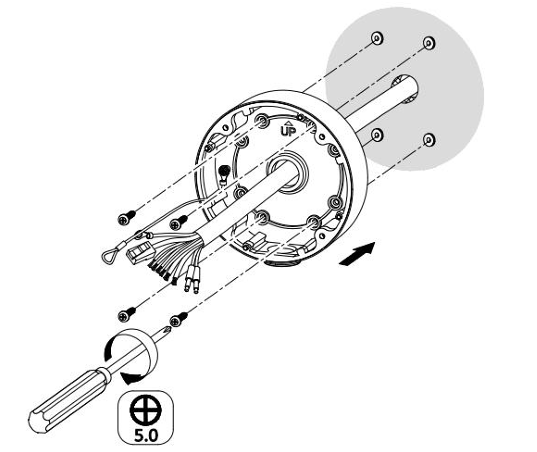

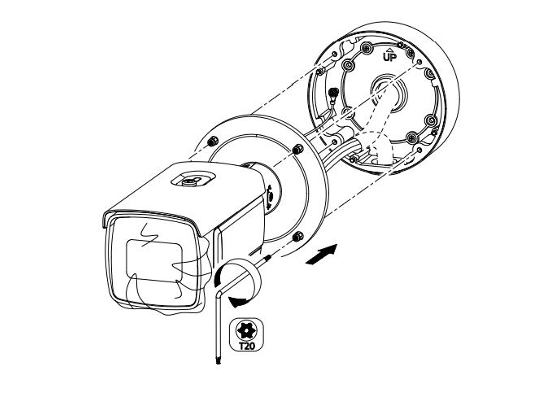

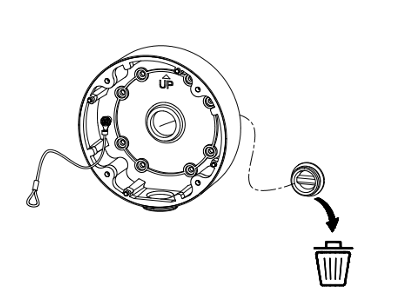

Wall Mount Option
To install the camera on a wall follow the instructions illustrated below:







Pole Mount Option
For mounting the camera to a pole a pole mounting kit is needed. The pole mounting kit is not included with the camera. To mount the camera to a pole follow the instructions included with the pole mounting kit.

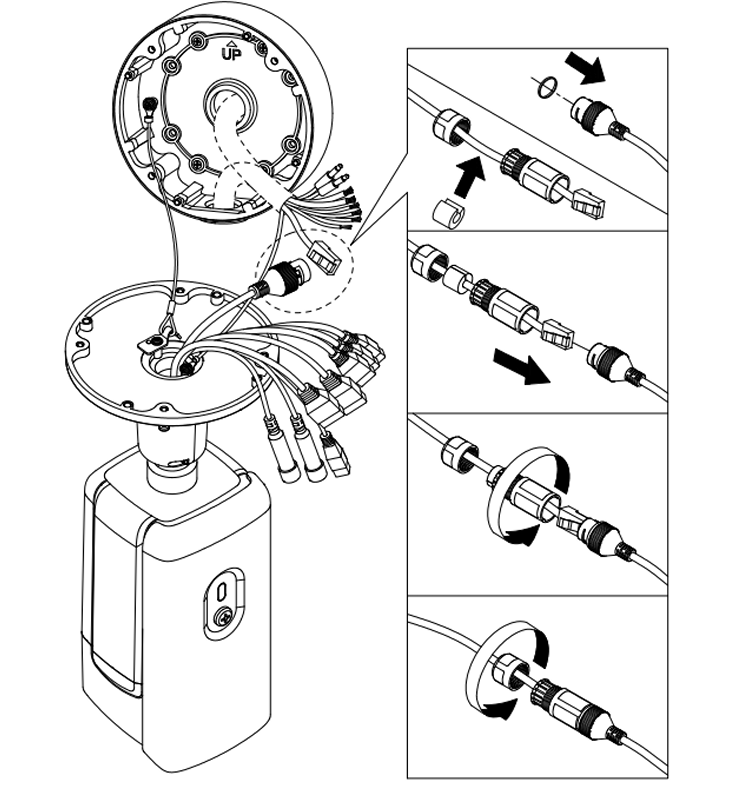

Connections
All wiring connections should be made inside the base plate to protect them from environmental conditions. If connecting the camera via Ethernet use the provided gasket. For protection other terminal connections use the provided water proof tape.
